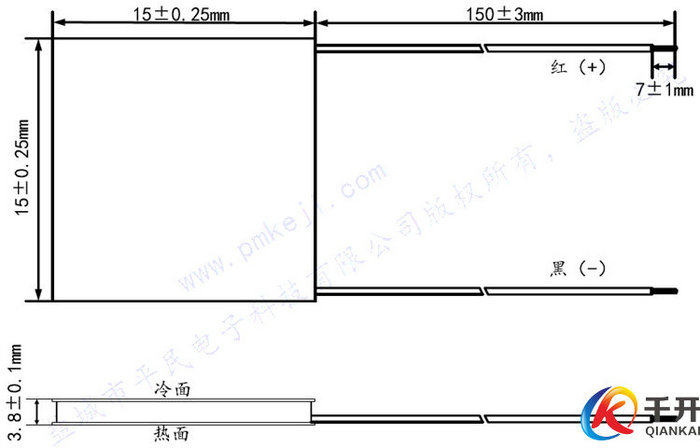

千开15*15mm 2V6A温差半导体电子制冷组件01706制冷片 制冷量6.9W

本店半导体制冷片型号命名规则

本店另有其他型号规格制冷片供您选购，下表中蓝色字体可点击链接型号产品100片以内均有现货，可不需咨询直接购买!

型号规格参数如下表

\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\

\ 尺寸（mm）	\ 型号	\ 电压（Vmax）	\ 电流（Imax）	\ 制冷量（Qmax）	\ 温差（Tmax）	\ 厚度（mm）
\ 10×10	\	\ 0.82	\ 3.9	\ 1.6	\ 66	\ 4.1
\	\ TEC1-00704	\ 0.82	\ 4	\ 1.8	\ 66	\ 4.1
\	\ TEC1-00705	\ 0.82	\ 5	\ 2.3	\ 66	\ 3.9
\	\	\ 0.82	\ 6	\ 2.7	\ 66	\ 3.8
\	\ TEC1-00707	\ 0.82	\ 7	\ 3.2	\ 66	\ 3.5
\	\ TEC1-00708	\ 0.82	\ 8	\ 3.7	\ 66	\ 3.5
\	\	\ 0.82	\ 10	\ 4.8	\ 66	\ 3.5
\	\	\ 0.82	\ 12	\ 5.8	\ 60	\ 3.2
\ 15×15	\	\ 2	\ 3.9	\ 3.9	\ 66	\ 4.2
\	\ TEC1-01704	\ 2	\ 4	\ 4	\ 66	\ 4.1
\	\ TEC1-01705	\ 2	\ 5	\ 5.6	\ 66	\ 4.1
\	\	\ 2	\ 6	\ 6.9	\ 66	\ 3.8
\	\ TEC1-01707	\ 2	\ 7	\ 8.1	\ 66	\ 3.5
\	\ TEC1-01708	\ 2	\ 8	\ 9.2	\ 66	\ 3.5
\	\	\ 2	\ 10	\ 11.5	\ 66	\ 3.1
\ 20×20	\	\ 3.66	\ 3.9	\ 7.2	\ 66	\ 4.4
\	\	\ 3.66	\ 4	\ 7.3	\ 66	\ 3.7
\	\ TEC1-03105	\ 3.66	\ 5	\ 10.3	\ 66	\ 3.9
\	\	\ 3.66	\ 6	\ 12.5	\ 66	\ 3.8
\	\ TEC1-03107	\ 3.66	\ 7	\ 14.7	\ 66	\ 3.5
\	\ TEC1-03108	\ 3.66	\ 8	\ 16.8	\ 66	\ 3.5
\	\	\ 3.66	\ 10	\ 20.2	\ 66	\ 3.5
\	\	\ 5.78	\ 3	\ 9.5	\ 65	\ 3.6
\	\	\ 5.78	\ 5	\ 16.6	\ 65	\ 3.2
\	\	\ 15	\ 0.8	\ 7	\ 65	\ 3.4
\	\	\ 15	\ 2	\ 16.9	\ 65	\ 2.6
\ 23×23	\	\ 8.4	\ 2.5	\ 12	\ 66	\ 4.0
\	\	\ 8.4	\ 3	\ 14	\ 66	\ 3.6
\	\	\ 8.4	\ 5	\ 24	\ 66	\ 3.2
\ 25×25	\	\ 5.78	\ 3	\ 10	\ 66	\ 4.2
\	\	\ 5.78	\ 4	\ 13.5	\ 66	\ 4.7
\	\	\ 5.78	\ 5	\ 17.1	\ 66	\ 3.8
\	\	\ 5.78	\ 6	\ 20.5	\ 66	\ 3.7
\	\ TEC1-04907	\ 5.78	\ 7	\ 24.0	\ 66	\ 3.5
\	\	\ 5.78	\ 8	\ 27.4	\ 66	\ 3.5
\	\	\ 5.78	\ 10	\ 32.5	\ 66	\ 3.4
\	\ TES1-12702	\ 15	\ 2	\ 16.0	\ 66	\ 3.7
\	\	\ 15	\ 2.5	\ 20.8	\ 66	\ 3.7
\	\	\ 15	\ 3	\ 25.6	\ 66	\ 3.7
\ 30×30	\ TEC1-07103	\ 8.4	\ 3.9	\ 16.4	\ 66	\ 4.4
\	\	\ 8.4	\ 4	\ 16.7	\ 66	\ 3.8
\	\ TEC1-07105	\ 8.4	\ 5	\ 23.7	\ 66	\ 3.9
\	\	\ 8.4	\ 6	\ 28.7	\ 66	\ 3.8
\	\ TEC1-07107	\ 8.4	\ 7	\ 33.6	\ 66	\ 3.5
\	\ TEC1-07108	\ 8.4	\ 8	\ 38.5	\ 66	\ 3.5
\	\	\ 8.4	\ 10	\ 47.3	\ 66	\ 3.4
\	\	\ 8.4	\ 13	\ 61	\ 66	\ 3.2
\	\	\ 15	\ 1.3	\ 11	\ 66	\ 5
\	\	\ 15	\ 2	\ 20	\ 66	\ 4
\	\	\ 15	\ 3	\ 25.6	\ 66	\ 3.2
\	\	\ 15	\ 4	\ 33.4	\ 66	\ 3.2
\	\	\ 15	\ 5	\ 43	\ 66	\ 3.2
\	\	\ 15	\ 6	\ 50	\ 66	\ 2.8
\ 中孔Φ4.5mm	\	\ 14	\ 3	\ 24	\ 66	\ 3.6
\ 40×40	\	\ 15	\ 2	\ 22	\ 66	\ 4.2
\	\	\ 15	\ 3.9	\ 29.3	\ 67	\ 4.2
\	\	\ 15	\ 4	\ 30	\ 67	\ 3.8
\	\	\ 15	\ 5	\ 42.5	\ 67	\ 3.8
\	\	\ 15	\ 6	\ 51.4	\ 67	\ 3.8
\	\	\ 15	\ 7	\ 60	\ 66	\ 3.9
\	\	\ 15	\ 8	\ 68.9	\ 66	\ 3.4
\	\	\ 15	\ 9	\ 80	\ 66	\ 3.4
\	\	\ 15	\ 10	\ 85	\ 66	\ 3.5
\	\	\ 15	\ 12	\ 95	\ 66	\ 3.2
\	\	\ 15	\ 15	\ 120	\ 66	\ 3.5
\	\	\ 28.8	\ 1.5	\ 25	\ 66	\ 4.4
\	\	\ 28.8	\ 2	\ 32.6	\ 66	\ 4.0
\	\	\ 28.8	\ 3	\ 48.5	\ 66	\ 3.6
\	\	\ 28.8	\ 4	\ 63.4	\ 66	\ 3.2
\	\	\ 28.8	\ 5	\ 80	\ 66	\ 3.2
\	\	\ 28.8	\ 6	\ 101	\ 66	\ 2.8
\ 50×50	\	\ 15	\ 5	\ 44	\ 66	\ 4.4
\	\	\ 15	\ 6	\ 52	\ 66	\ 4.0
\	\	\ 15	\ 8	\ 69	\ 66	\ 4.6
\	\	\ 15	\ 10	\ 85	\ 66	\ 4.2
\	\	\ 15	\ 12	\ 102	\ 66	\ 4.0
\	\	\ 15	\ 14	\ 118	\ 66	\ 3.9
\	\	\ 15	\ 18	\ 150	\ 66	\ 3.6
\	\	\ 15	\ 26	\ 220	\ 66	\ 3.2
\	\	\ 30	\ 3.9	\ 70	\ 67	\ 5.2
\	\	\ 30	\ 6	\ 107	\ 66	\ 4.8
\	\	\ 30	\ 8	\ 140	\ 66	\ 4.2
\	\	\ 30	\ 15	\ 267.8	\ 64	\ 4.0
\ 62×62	\	\ 16	\ 12	\ 102	\ 67	\ 5.1
\	\	\ 16	\ 30	\ 253	\ 65	\ 4.8
\	\	\ 16	\ 40	\ 338	\ 65	\ 4.5

型号规格参数如下表

\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\

\ 尺寸（mm）	\ 型号	\ 电压（Vmax）	\ 电流（Imax）	\ 制冷量（Qmax）	\ 温差（Tmax）	\ 厚度（mm）
\ 12.3×24.7	\	\ 6.9	\ 2	\ 8.5	\ 65	\ 3.4
\ 15×20	\ TEC1-02303	\ 2.83	\ 3	\ 4.8	\ 66	\ 4.4
\	\ TEC1-02304	\ 2.83	\ 4	\ 6.4	\ 66	\ 4.1
\	\ TEC1-02305	\ 2.83	\ 5	\ 8.05	\ 66	\ 3.9
\	\	\ 2.83	\ 6	\ 9.6	\ 66	\ 3.8
\	\ TEC1-02307	\ 2.83	\ 7	\ 11.7	\ 66	\ 3.5
\	\ TEC1-02308	\ 2.83	\ 8	\ 12.8	\ 66	\ 3.5
\	\	\ 2.83	\ 10	\ 15.5	\ 66	\ 3.4
\ 15×30	\ TEC1-03503	\ 4.13	\ 3	\ 7.3	\ 66	\ 4.8
\	\ TEC1-03504	\ 4.13	\ 4	\ 9.5	\ 66	\ 4.1
\	\ TEC1-03505	\ 4.13	\ 5	\ 12.2	\ 66	\ 3.9
\	\	\ 4.13	\ 6	\ 14.7	\ 66	\ 3.8
\	\ TEC1-03507	\ 4.13	\ 7	\ 17.1	\ 66	\ 3.5
\	\ TEC1-03508	\ 4.13	\ 8	\ 19.6	\ 66	\ 3.5
\	\	\ 4.13	\ 10	\ 24.5	\ 66	\ 3.5
\	\	\ 7.43	\ 3	\ 12.7	\ 66	\ 3.6
\	\	\ 7.43	\ 5	\ 21	\ 66	\ 3.2
\ 20×30	\	\ 5.6	\ 5	\ 15.8	\ 66	\ 3.8
\ 20×40	\ TEC1-06303	\ 7.43	\ 3	\ 13.2	\ 66	\ 4.4
\	\ TEC1-06304	\ 7.43	\ 4	\ 17.5	\ 66	\ 4.1
\	\	\ 7.43	\ 5	\ 22	\ 66	\ 3.8
\	\ TEC1-06306	\ 7.43	\ 6	\ 26.4	\ 66	\ 3.8
\	\ TEC1-06307	\ 7.43	\ 7	\ 30.8	\ 66	\ 3.5
\	\	\ 7.43	\ 8	\ 35.2	\ 66	\ 3.5
\	\	\ 7.43	\ 9	\ 37.7	\ 66	\ 3
\	\ TEC1-06310	\ 7.43	\ 10	\ 41.9	\ 66	\ 3.4
\	\	\ 7.43	\ 12	\ 50	\ 64	\ 3
\ 20×50	\ TEC1-07903	\ 9.3	\ 3	\ 16.6	\ 66	\ 4.4
\	\ TEC1-07904	\ 9.3	\ 4	\ 22.1	\ 66	\ 4.1
\	\	\ 9.3	\ 5	\ 27.6	\ 66	\ 3.7
\	\ TEC1-07906	\ 9.3	\ 6	\ 33	\ 66	\ 3.8
\	\ TEC1-07907	\ 9.3	\ 7	\ 38.7	\ 66	\ 3.5
\	\ TEC1-07908	\ 9.3	\ 8	\ 44.2	\ 66	\ 3.5
\	\	\ 9.3	\ 10	\ 52.5	\ 66	\ 3.4

型号规格参数如下表

\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\\

\ 尺寸 \ （mm）	\ 型号	\ 电压 \ （Vmax）	\ 电流 \ （Imax）	\ 制冷量 \ （Qmax）	\ 温差 \ （Tmax）	\ 厚度 \ （mm）
\ 外径26内径10	\	\ 5.78	\ 3	\ 9.5	\ 66	\ 3.6
\ 30×30双层	\	\ 16	\ 3	\ 15	\ 80	\ 6.8
\ 40×40双层	\	\ 16	\ 6	\ 36	\ 80	\ 6.2
\ 40×40双层	\	\ 16	\ 7	\ 45	\ 80	\ 6.0
\ 62×62双层	\ TEC2-19709	\ 16	\ 9	\ 55	\ 75	\ 8.8
\ 20-30-40三层	\	\ 16	\ 3	\ 11.1	\ 90	\ 10.8
\ 25-38-50三层	\	\ 16	\ 8	\ 26.4	\ 90	\ 10.5
\ 15-20-30-40四层	\	\ 14.6	\ 3	\ 6.8	\ 107	\ 13.6
\ 15-20-30-40四层	\	\ 14.6	\ 6	\ 13.5	\ 107	\ 11.2
\ 20-25-38-50四层	\ TEC4-24608	\ 14.6	\ 8	\ 17	\ 107	\ 12.6
\ 20-30-40-50-55-62六层	\ TEC6-60505	\ 30	\ 5	\ 10	\ 100	\ 22.8

本店另有半导体制冷片配套使用的风冷、水冷散热配件和供电用的开关电源以及装配好的半导体制冷器成品供您选购，详情可咨询客服人员，谢谢！
